Complete Used Non-Stop Crank-Up Scaffolding Package: Towers, Winches, Carriages & Accessories

Product Overview

Increase masonry production and job site safety with this complete Used Non-Stop Crank-Up Scaffolding Package. Purchased in 2015 and used only a few times, this system is in excellent working condition and provides enough equipment to build approximately 130 linear feet of scaffold standing 20 feet tall.

Engineered specifically for high-efficiency brick, block, and stone installation, this elevating scaffolding system allows masons and tenders to continuously raise their working platform as walls are built—keeping workers continuously at an optimal waist-high level to eliminate production stops and maximize daily output.

Key Features & Operational Capabilities

• Continuous Waist-High Work Height: Tenders easily crank up the platform in 16-inch increments so masons stay at a comfortable working height without stopping production.

• Two-Speed Heavy-Duty Winches: Features a Low Gear for maximum lifting power (easily raising heavy loads like full pallets of block and mortar) and a High Gear for rapid lowering of empty platforms.

• Double-Acting Safety Hold: Equipped with an anti-reverse mechanical safety dog mechanism that prevents handle free-spinning; releasing the handle instantly locks the winch in place to prevent accidental drops.

• Dual Walkboard Support Arms (Carriages): Heavy-duty cantilevered trusses ride up vertical towers on smooth guide rollers to hold separate planking for both the Mason’s Side (Inboard) and the Laborer/Tender Side (Outboard), raising workers, mortar, block, and tools simultaneously.

• Access Landings for Low Overhead: Mounts to elevating carriages to provide safe step-off platforms when working under tight clearances (less than 4 feet of tower remaining above the stage, such as under soffits or inside gymnasiums).

• Plumb & Level Fine-Tuning: Threaded turnbuckle top struts and adjustable braces allow crews to easily level and align towers to 100% plumb before loading materials.

Package Inventory & Quantities

Item Description Quantity Heavy-Duty 5-Board Base Towers

• 12-Heavy-Duty 5-Board Elevating Brackets & Winches

• 12- 9' Tower Extensions

• 12 - X-Braces11Straight Braces

• 11 - Adjustable Straight Braces

• 12 - Leveling Jacks

• 24 - Guardrail Posts

• 12 - HD 5-Board Guardrail Ends (Laborer & Mason Sides)

• 12- Wall Tie-In Brackets

• 12 - Inside Corner Arms

• 2 - Heavy Duty Inside Corner Returns (3-Piece Sets)

• 2 - Swivel Forklift Bars

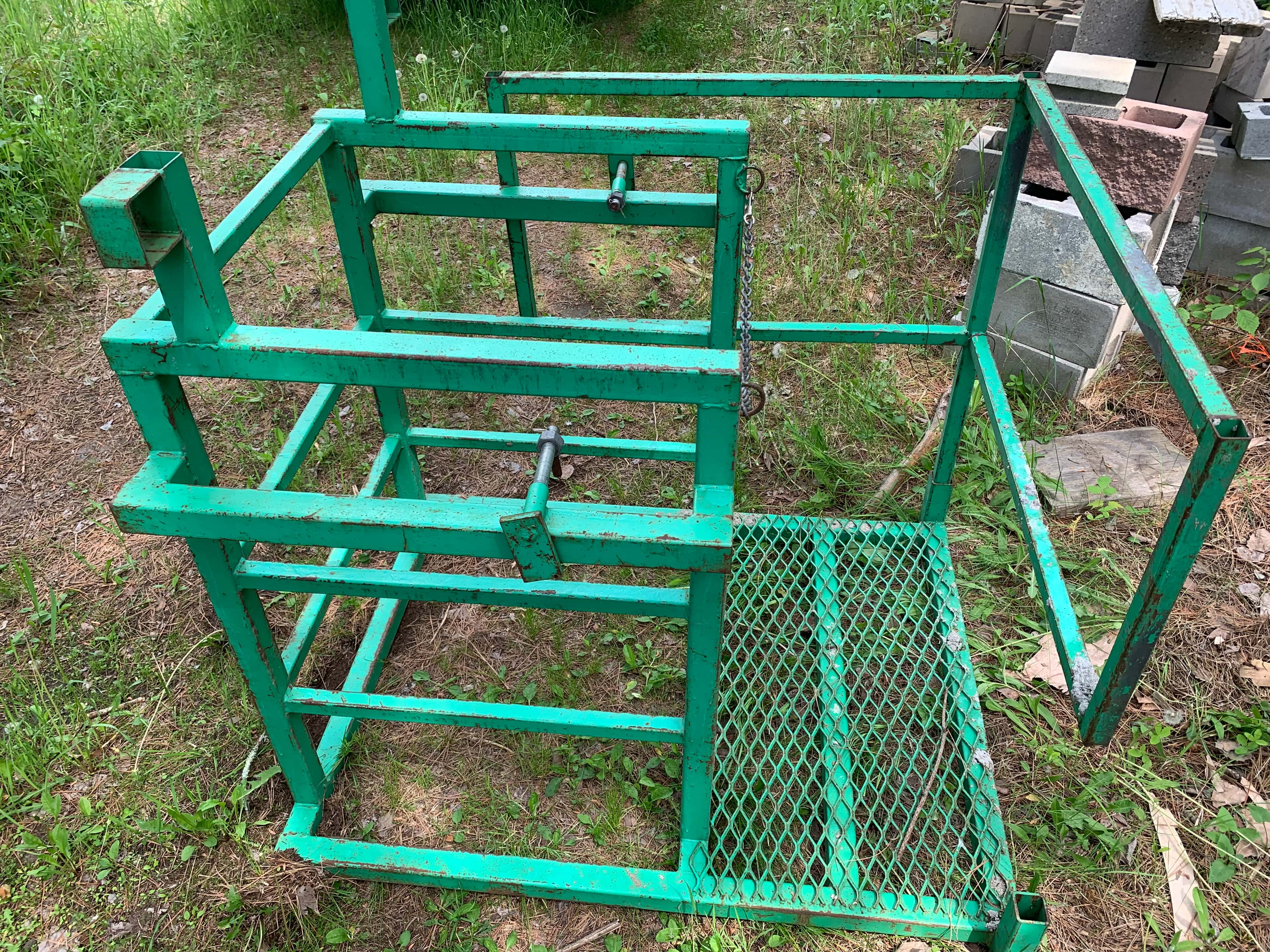

• 2 - Access Landings

• 2 - Rack System Brackets

• 12 - HD Rack System Levelers

• 4 - Barricade Guardrails

• 2 - Parts Baskets1Parts Basket Guardrails1

Key Cost Analysis Insights

1. Immediate Capital Retention: Buying this used package saves $14,500 to $20,500 compared to buying brand-new equipment from a factory dealer.

2. Minimal Depreciation Loss: Non-Stop heavy-duty steel scaffolding maintains high resale value due to its simple mechanical design (no motors, hydraulics, or electronics to fail). Because this set was only used a few times, it offers essentially "new-equipment performance" at a used-market entry price.

3. Turnkey Specialty Savings: Accessories like Access Landings, Rack Systems, Swivel Forklift Bars, and Corner Returns add significant cost when piecing together a new package individually. Included together in this lot, they deliver high job-site versatility without added a la carte costs.

Frequently Asked Questions (FAQ)

How much wall area does this non-stop scaffolding lot cover?

This package contains enough components to set up approximately 130 linear feet of scaffold tower line at a 20-foot working height.

What is the condition and history of this equipment?

The lot was originally purchased new in 2015 and has only been used a few times, making it a clean, lightly used package ready for immediate site deployment.

How does the system perform in low overhead clearance conditions?

The included Access Landings mount directly onto the elevating carriages, giving workers a safe step-off platform onto the walk boards even when there is less than 4 feet of tower stick remaining overhead (e.g., inside gyms or under overhangs).
