Cuplock Systems Scaffolding
System scaffold that uses cup‑shaped nodes on the standards instead of rings, with ledgers locked in by top and bottom cups. It is durable, repetitive, and efficient for long runs and heavy duty support, commonly used on housing, bridges, tunnels, demolition, and viaduct projects where standardized bays are acceptable.
What Is Cuplock Systems Scaffolding?
Definition: Cuplock systems scaffolding is a modular scaffold system that connects horizontal ledger blades to vertical standards using a unique two-cup locking mechanism. Each standard has a fixed bottom cup and a rotating top cup welded at 0.5-meter intervals. Up to four horizontal ledger blades can be inserted into the bottom cup simultaneously from any direction, then locked in place by rotating and striking down the top cup — no bolts, nuts, wedges, or loose fittings required at any point in the assembly.

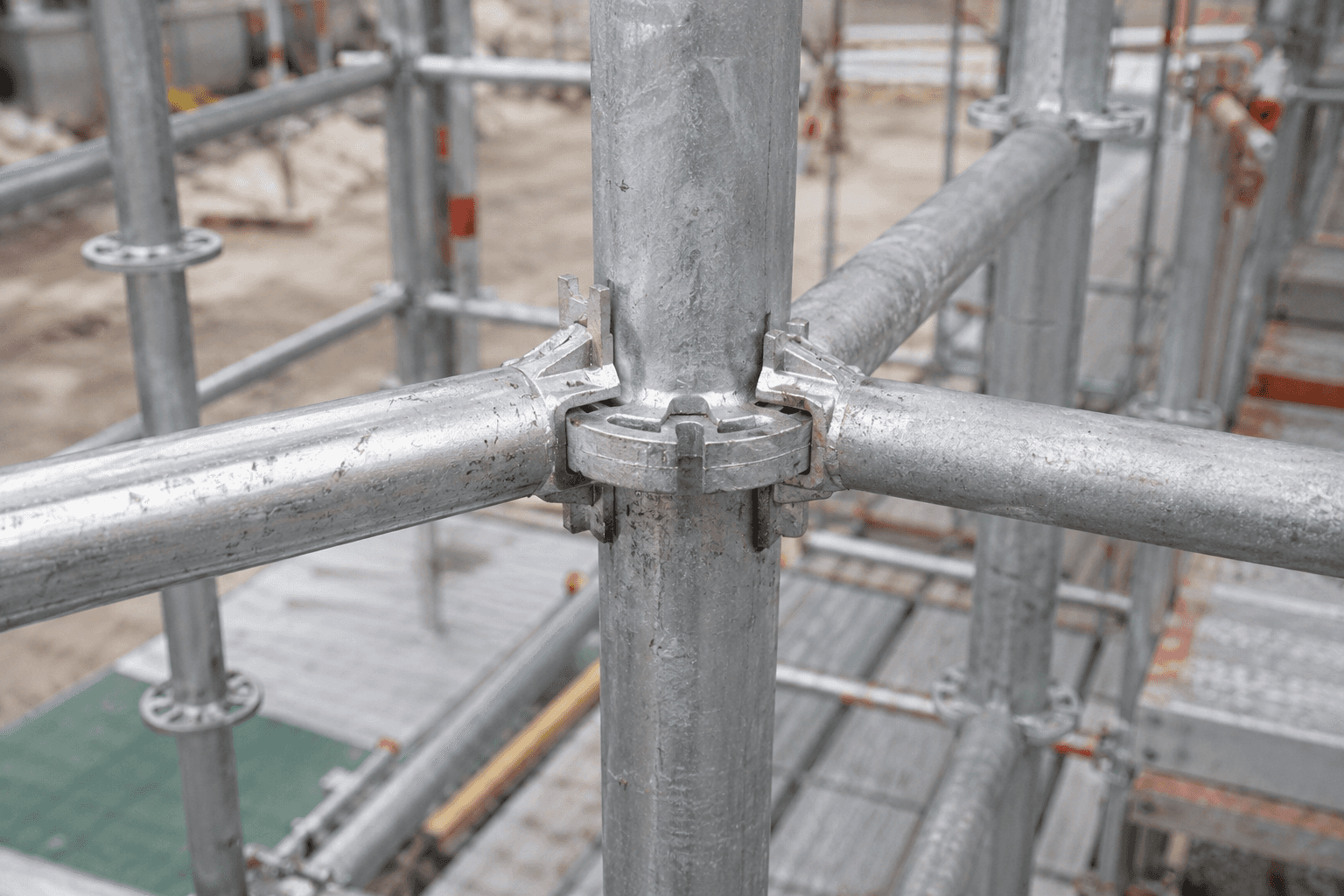

The cup-and-blade node is what sets Cuplock apart from every other modular scaffold system. Where wedgelock systems lock one connection per hammer blow, the Cuplock top cup locks up to four horizontal members at the same node in a single strike. This makes it one of the fastest modular scaffold systems to erect and dismantle, particularly on large-bay configurations where every node has multiple ledger connections.
Because the Cuplock system is fully self-aligning — the scaffold automatically squares itself when the base lift is leveled — it requires less skill to erect than tube-and-clamp systems and less pattern-specific knowledge than proprietary frame systems. Components are manufactured from high-grade S355 steel, typically 20% lighter than standard scaffolding tube due to the use of 3.2mm wall rather than 4mm, and are hot-dip galvanized for long-term corrosion resistance. Through Scaffold Exchange, you can find vendors across the U.S. who carry Cuplock system scaffolding and compare their inventory, rental rates, and availability in your area.
How Cuplock Scaffolding Works
The Cuplock assembly process is the same at every node throughout the system. The two-cup locking mechanism is the defining feature — one strike can simultaneously secure up to four connections at a single point.
Place the Standards
Vertical standards are set on adjustable base jacks and leveled. The system self-aligns as each lift is leveled, reducing the skill required for accurate erection.
Insert the Ledger Blades
Horizontal ledger blades are inserted into the slots of the fixed bottom cup on each standard. Up to four ledgers can be inserted simultaneously from any direction at the same node.
Drop and Strike the Top Cup
The rotating top cup is dropped down over all inserted blades and struck once with a hammer. All connections at that node are locked simultaneously — rigid, secure, and ready to load.
Add Braces & Decking
Diagonal braces provide lateral stability, and prefabricated steel or aluminum deck planks are placed across the transoms to complete each working platform level.
Key Components of a Cuplock System
The Cuplock system uses a compact, purpose-designed set of components. Every part is engineered to work specifically within the cup-and-blade connection system, eliminating the need for separate couplers or loose fasteners of any kind.
Verticals (Standards)
High-tensile steel uprights with bottom cups and top cups welded every 500mm. Available in a range of heights and manufactured with integral spigots for vertical stacking connections.
Bottom Cup
A fixed cup welded to the standard at each node. Accepts up to four horizontal ledger blades inserted from any direction. The foundation of every Cuplock connection point.
Top Cup
A rotating cup that sits above the bottom cup. Dropped down and struck with a hammer to simultaneously lock all ledger blades inserted at that node. One blow — all connections locked.
Ledgers & Transoms
Horizontal members with blade ends that slot into the bottom cup. Ledgers span between standards along the scaffold length; transoms span the width to support the deck planks.
Adjustable Base Jacks
Screw-type leveling jacks at the base of each standard for leveling on uneven, sloped, or soft ground. The system self-aligns as each lift is correctly leveled.
Hop-Up Brackets
Specialized brackets that extend the working platform beyond the main scaffold frame, providing access to wall surfaces, fascias, and other features without repositioning the entire structure.
Common Applications & Job Site Uses
Cuplock systems scaffolding is used across a wide range of commercial, industrial, and infrastructure projects throughout the United States. Its combination of speed, load capacity, and adaptability makes it suitable for both standard access scaffolding and demanding shoring or formwork applications.
Commercial building construction and multi-story facade access
Concrete formwork and shoring support systems
Industrial plant maintenance, turnarounds, and shutdowns
Bridge construction, inspection, and repair
Curved, circular, and irregular structure access
Stair towers and internal access structures
Historic building restoration and facade work
Infrastructure, utility, and power generation projects
Key Advantages of Cuplock Systems Scaffolding
The Cuplock system's two-cup locking node delivers distinct advantages over both traditional frame systems and tube-and-clamp, particularly on large-bay and multi-story projects where connection speed and structural rigidity are critical.
Up to Four Connections Per Strike
The top cup locks all ledger blades at a node in one hammer blow — up to four horizontal connections secured simultaneously, making Cuplock one of the fastest modular systems to erect.
No Loose Parts Whatsoever
No bolts, nuts, wedges, or separate couplers of any kind. The entire connection system is integral to the standard — nothing to drop, lose, or forget to tighten on the job site.
Self-Aligning System
The Cuplock structure automatically aligns itself when the base lift is leveled. This reduces skilled labor requirements and speeds up erection compared to systems requiring manual alignment at every level.
High Load Capacity
High-grade S355 steel construction with a rigid cup-node connection delivers excellent load capacity for both access scaffolding and heavy-duty shoring and formwork support applications.
How Cuplock Compares to Other Scaffolding Systems
Cuplock occupies a similar market position to Wedgelock systems — fast, no-bolt modular assembly — but uses a fundamentally different connection mechanism. Click any card to learn more about each system.
Standard prefabricated panels
- Fastest for routine exterior work
- Most affordable and widely available
- Fixed frame geometry — less adaptable
- Best for flat, regular building exteriors
Hammer-set wedge connection
- One wedge connection per hammer blow
- Rosette ring accepts multiple directions
- Similar speed and flexibility to Cuplock
- No rotating parts — pure wedge friction lock
Proprietary ringlock modular system
- 360-degree ring sets at 21" intervals
- Seismic qualified for critical facilities
- Proprietary — sourced from Safway vendors only
- Wedge connection — similar to wedgelock
Maximum configuration flexibility
- Any angle — no fixed connection points
- More flexible than Cuplock
- Slower to erect — loose couplers at every joint
- Best where geometry is fully unpredictable
Lightweight aluminum system
- 50–65% lighter than steel systems
- Lower load capacity than Cuplock
- Best for interior and residential work
- Not suited to heavy industrial or shoring use
Find Cuplock Systems Scaffolding Vendors Near You
Use the Scaffold Exchange map to search by location, filter by equipment type, and connect directly with local suppliers who carry Cuplock or compatible modular system scaffolding.
OSHA Compliance & Safety Standards
Cuplock systems scaffolding used on U.S. job sites must comply with OSHA standard 29 CFR 1926.451, which governs all supported scaffold systems in construction. The integral cup-node connection eliminates loose fittings that can be under-tightened or missed during inspection, improving baseline safety — but proper erection and inspection by a competent person is still required before every shift. Always configure the system according to the manufacturer's load tables and technical documentation.
- All top cups fully struck down and locked before loading any platform
- Guardrails on all open sides and ends above 10 feet
- Mid-rails at the midpoint between top rail and platform surface
- Toe boards installed to prevent falling tools and materials
- Base jacks and mudsills used on all vertical standards
- System load capacity verified against manufacturer's tables before use
- Scaffold inspected by a competent person before each work shift
