What Is Pinlock Systems Scaffolding?
Definition: Pinlock systems scaffolding is a modular rosette-based scaffold system engineered specifically for the North American market. Like the European ringlock system, it uses vertical steel standards with rosette rings and horizontal ledgers with wedge-pin heads that lock into the rosette with a single hammer blow — no loose bolts, nuts, or separate couplers required. The key distinction is that Pinlock follows North American sizing conventions: imperial ledger lengths, North American plank formats, and compliance with ANSI and CSA standards, making it the preferred ringlock-type system for U.S. and Canadian contractors.
Pinlock occupies the same category as ringlock scaffolding — rosette-based, wedge-pin connection, no loose parts — but is purpose-built for the North American construction market. Where European ringlock systems like Layher Allround use metric dimensions, Pinlock ledgers are available in imperial lengths from 2 feet to 10 feet, and the plank widths, stair connections, and component specifications align with what U.S. and Canadian crews expect. This makes Pinlock the natural choice for contractors who want a modern modular system without the specification mismatches that can come with adapting European metric systems to North American job sites.
The Pinlock system is manufactured from S355 high-strength steel — the same grade used in premium European ringlock systems — including the rosette rings and wedge pins, providing the structural integrity and long service life required for rental fleet investment and repeated project use. Through Scaffold Exchange, you can find vendors across the U.S. who carry Pinlock system scaffolding and compare their inventory, rental rates, and availability in your area.
How Pinlock Scaffolding Works
The Pinlock assembly process is straightforward and consistent at every node — the same wedge-pin-into-rosette sequence regardless of the angle or direction of the connection.
Set the Standards
Vertical standards are placed on adjustable base jacks and leveled, establishing the scaffold grid at the correct bay spacing. Standards stack vertically via spigot connections at the top of each section.
Insert the Wedge-Pin Heads

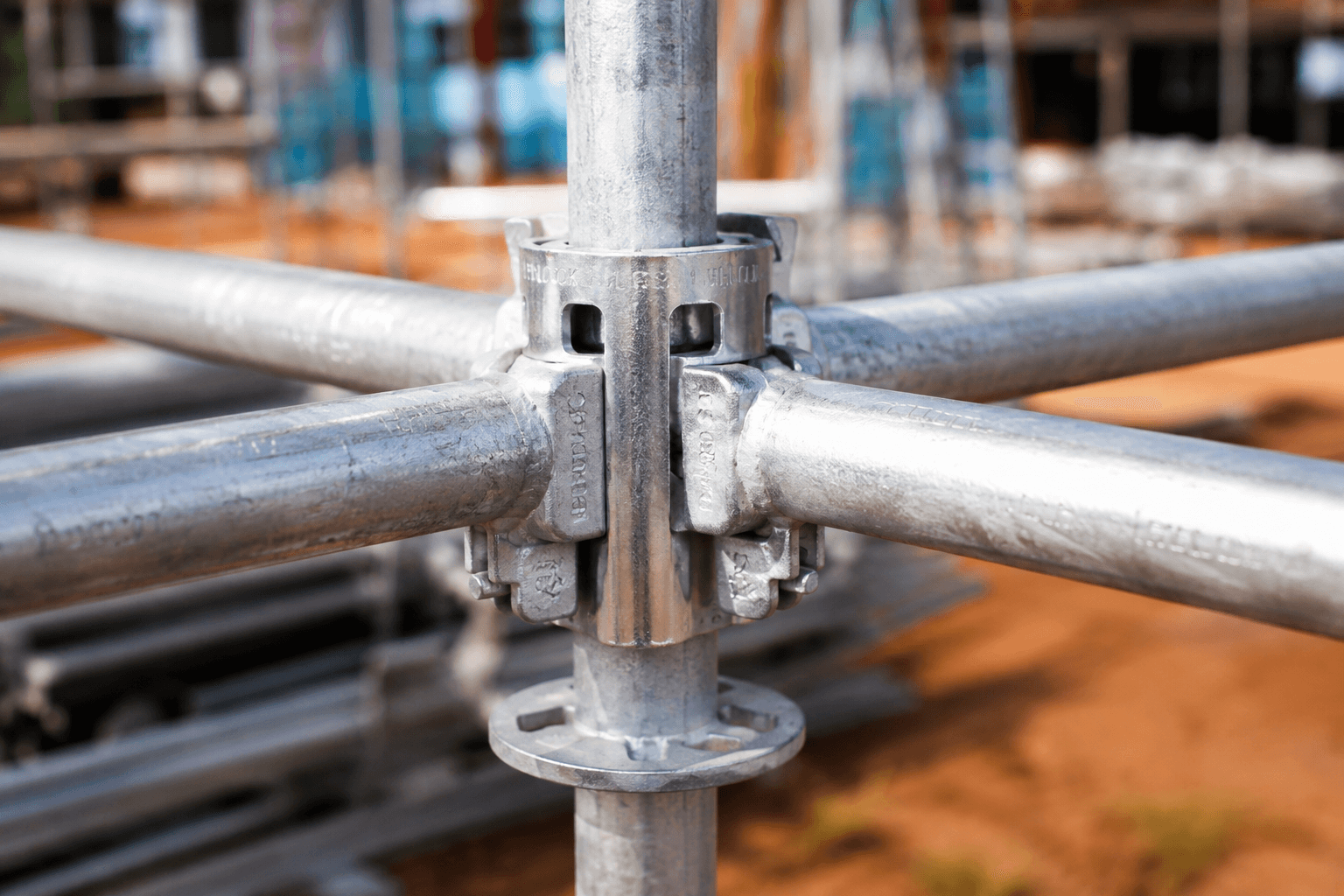

The wedge-pin head at the end of each horizontal ledger or diagonal brace is inserted into one of the rosette holes on the standard. Connections can be made at multiple angles around the full rosette.
Drive the Pin
A single hammer blow drives the wedge pin into its locked position in the rosette slot. The connection is immediately rigid and load-ready — no bolts, no wrenches, no secondary tightening required.
Install Braces & Decking
Diagonal bay braces are added for lateral stability, then North American-format steel or aluminum planks are placed across the ledgers to complete each working platform level.
Key Components of a Pinlock System
The Pinlock system uses a compact set of standardized components sized to North American conventions. All primary components connect via the same rosette-and-wedge-pin mechanism, eliminating the need for separate couplers or loose fasteners of any kind.
Standards (Verticals)
High-strength S355 steel uprights with rosette rings welded at regular intervals and integral spigots for vertical stacking. Available from 0.5m to 4.0m to accommodate a wide range of lift heights.
Rosette Rings
Multi-hole discs welded to each standard at regular intervals. Accept wedge-pin heads from multiple directions simultaneously, allowing multi-directional configuration at each node point.
Ledgers (Horizontals)
Available in imperial lengths from 2 to 10 feet — North American sizing aligned with standard U.S. bay configurations. Wedge-pin heads lock into rosettes with a single hammer blow.
Truss Ledgers (Double Ledgers)
Reinforced double-tube horizontal members for high-load applications. Built from two parallel 48.3mm tubes to handle greater span loads and formwork or shoring requirements beyond standard ledger capacity.
Diagonal Braces
Bay braces with wedge-pin heads that connect into rosette holes to provide lateral stability and resistance to sway across multi-level and multi-bay configurations.
Adjustable Base Jacks & Base Collars
Screw-type leveling jacks at the base of each standard, with base collars that include rosette rings to create a lower node connection point for the first lift directly at ground level.
Common Applications & Job Site Uses
Pinlock systems scaffolding is used across a wide range of commercial, industrial, and infrastructure projects throughout the United States and Canada. Its North American sizing and compliance credentials make it the practical choice for contractors working under U.S. specifications.
Commercial building construction and facade access
Industrial plant maintenance, turnarounds, and shutdowns
Bridge construction, inspection, and repair
Curved, circular, and irregular structure access
Stair towers and internal access structures
Shoring and concrete formwork support
Infrastructure, utility, and power generation projects
Rental fleet operations requiring North American-spec components
Key Advantages of Pinlock Systems Scaffolding
Pinlock delivers the performance benefits of a modern rosette-based modular system — fast no-bolt assembly, multi-directional flexibility, high load capacity — while being specifically engineered to meet North American sizing and compliance requirements.
Built for North America
Imperial ledger lengths from 2 to 10 feet, North American plank formats, and ANSI/CSA compliance — designed from the ground up for U.S. and Canadian job sites, not adapted from metric European specs.
Single-Blow Assembly
Every connection locks with one hammer blow into the rosette ring — no bolts, no wrenches, no secondary tightening. Experienced crews erect Pinlock significantly faster than tube-and-clamp systems.
Multi-Directional Flexibility
The rosette ring accepts connections from multiple directions simultaneously, allowing the system to adapt to angled bays, curved structures, and complex geometries beyond the reach of frame scaffolding.
High-Strength Steel Construction
Manufactured from S355 high-strength steel — the same grade used in premium European ringlock systems — with hot-dip galvanizing for long-term corrosion resistance and repeated reuse across projects.
How Pinlock Compares to Other Scaffolding Systems
Pinlock is the North American rosette-and-wedge modular system — combining the performance of ringlock with sizing built for U.S. and Canadian job sites. Click any card to learn more about each system.
Standard prefabricated panels
- Most affordable and widely available
- Fastest for routine exterior work
- Fixed frame geometry — less adaptable
- Best for flat, regular building exteriors
European metric rosette system
- Same rosette-and-wedge principle as Pinlock
- Metric sizing — European plank and stair formats
- 8-hole rosette — up to 8 connections per node
- Not directly interchangeable with Pinlock
Hammer-set wedge modular system
- Rosette-and-wedge connection — similar to Pinlock
- Varies by manufacturer and market
- May use different rosette hole counts
- Confirm compatibility before combining
Two-cup rotating lock system
- Different connection mechanism — no rosette
- Locks up to 4 connections per node per blow
- Fast for large-bay configurations
- Less angular flexibility than rosette systems
Maximum configuration flexibility
- Any angle — no fixed connection points
- More flexible than Pinlock for irregular work
- Slower to erect — loose couplers at every joint
- Best where geometry is fully unpredictable
Find Pinlock Systems Scaffolding Vendors Near You
Use the Scaffold Exchange map to search by location, filter by equipment type, and connect directly with local suppliers who carry Pinlock or compatible North American modular scaffold systems.
OSHA Compliance & Safety Standards
Pinlock systems scaffolding used on U.S. job sites must comply with OSHA standard 29 CFR 1926.451, which governs all supported scaffold systems in construction. The Pinlock system is also manufactured to ANSI and CSA standards for the North American market, providing an additional layer of specification compliance beyond the federal minimum. Always configure the system according to the manufacturer's load tables and technical documentation, and confirm with the vendor that their components meet current federal and applicable state safety standards.
- All wedge-pin connections fully driven and inspected before loading
- Guardrails on all open sides and ends above 10 feet
- Mid-rails at the midpoint between top rail and platform surface
- Toe boards installed to prevent falling tools and materials
- Base jacks and mudsills used on all vertical standards
- System load capacity verified against manufacturer's tables before use
- Scaffold inspected by a competent person before each work shift
- Do not mix components from incompatible systems or manufacturers
1926.451
Supported Scaffolds — U.S. Construction Regulations
OSHA Interpretations & Rulings →
